Detailed Product Description

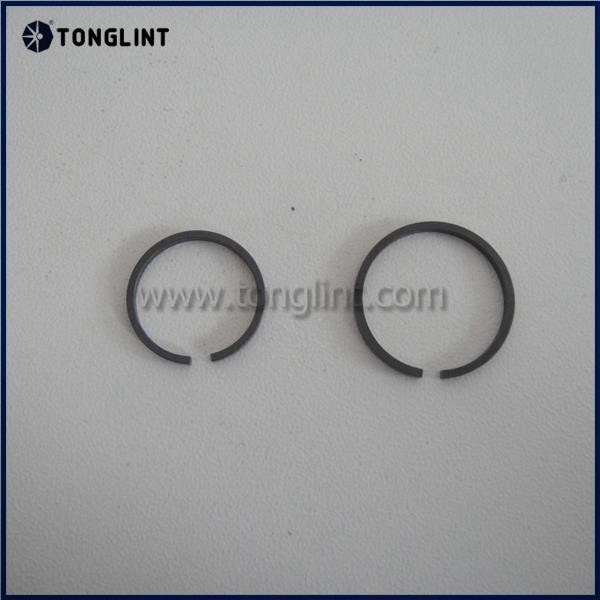

Repalcement Parts Turbocharger Piston Ring H1C H1E H2A H2C H2D HX30 HX35 HX40
Specifications:
| Turbo Model |
H1C / H1E / H2A / H2C / H2D / H2E / HX30 / HX30W / HX35/ HX35W / HX40 / HX40W |
|
Material |
3Cr13 / W-Mo |
|
Over-sized Rings |
Available |
Standard Dimension
| Tonglint No. |
End |
OE No. |
O/D |
Width |
Thickness |
Qty / Set |
|
TPR20004 |
Turb. |
56754 |
19.30 |
1.60 |
1.00 |
1 |
|
Comp. |
58848 |
16.13 |
1.60 |
0.90 |
1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) |
STD/0.005", 0.005"/0.005", 0.005"/STD |
|
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
