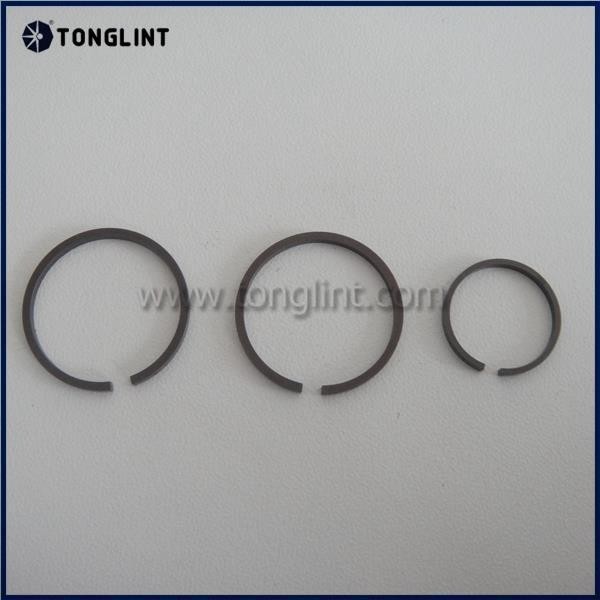

Turbocharger Seal Ring / Piston Ring HX55 / HX55W

Product Description

Detailed Product Description
Turbocharger Seal Ring / Piston Ring HX55 / HX55W Twin Rings

Specifications:

Turbo Model	HX55 / HX55W
Material	3Cr13 / W-Mo
Over-sized Rings	Available

Standard Dimension

Tonglint No.	End	OE No.	O/D	Width	Thickness	Qty / Set
TPR20008	Turb.	3531441	22.48	1.59	1.30	2
TPR20008	Comp.	58848	16.13	1.60	1.00	1

Over-sized Dimension

Over-sized (OD+ / ID+)	STD/0.005", 0.005"/0.005", 0.005"/STD
	STD/0.010", 0.010"/0.010", 0.010"/STD
	STD/0.020", 0.020"/0.020", 0.020"/STD
	0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010"
