Detailed Product Description

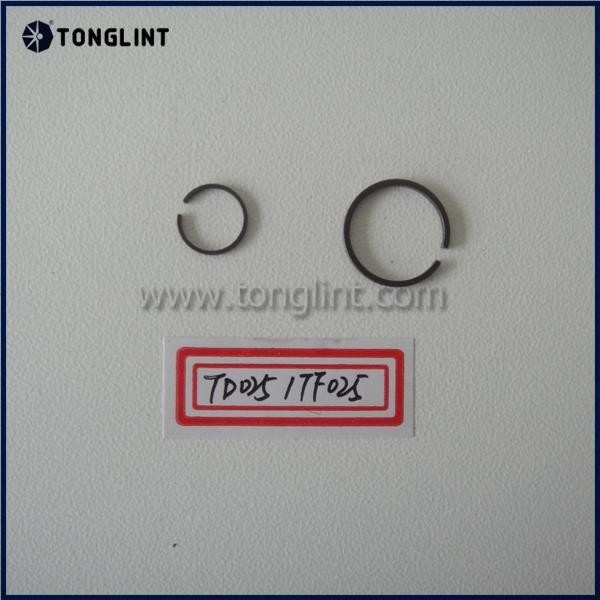

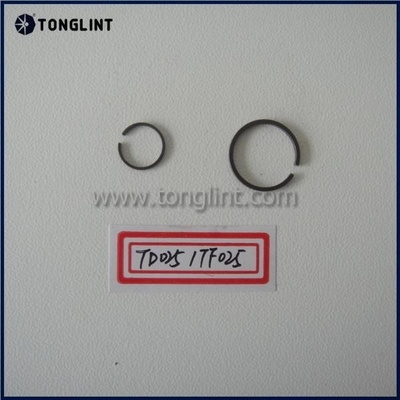

High-speed Steel Piston Ring TD025 / TF025 for Hyundai Turbocharger Accessories
Specifications:
| Turbo Model | TD02 / TD025 / TF025 |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR60001 | Turb. | 49170-23100 | 12.40 | 1.16 | 0.70 | 1 |
Comp. | 8.00 | 0.78 | 0.50 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020",0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
Journal Bearing
Cummins Truck KCEC HX35W Turbocharger
Audi Car K03 Turbo 53039880025 53039700025 Turbocharger
Turbocharger Core TB2518
F08L-28M-22 Turbocharger Cartridge Turbo CHRA
CHRA Turbo Garrett Mercedes
