Detailed Product Description

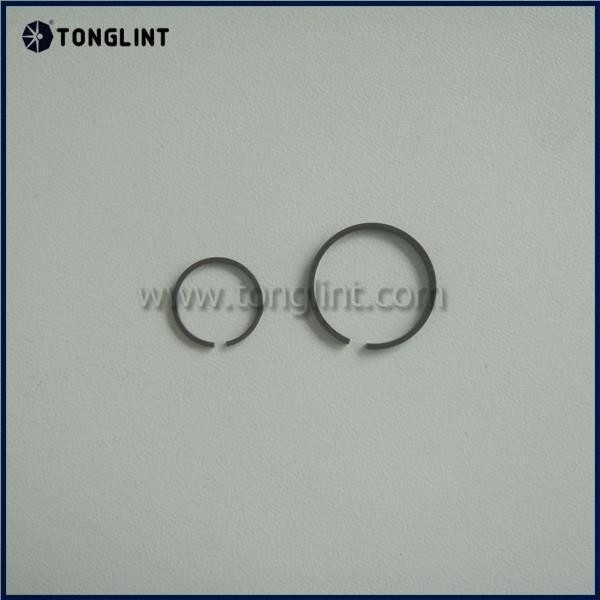

Piston Ring TD05H / TD06 Turbo Seal Ring of 3Cr13 Material MHI Diesel Engine Part
Specifications:
| Turbo Model | TD05H / TD06 / TC05 / TC06 |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR60004 | Turb. | 49178-23100 | 17.55 | 1.58 | 0.90 | 1 |
Comp. | 49170-23100 | 12.40 | 1.16 | 0.80 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005",0.005"/0.005", 0.005"/STD |
STD/0.010",0.010"/0.010", 0.010"/STD |
|
STD/0.020",0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
