Detailed Product Description

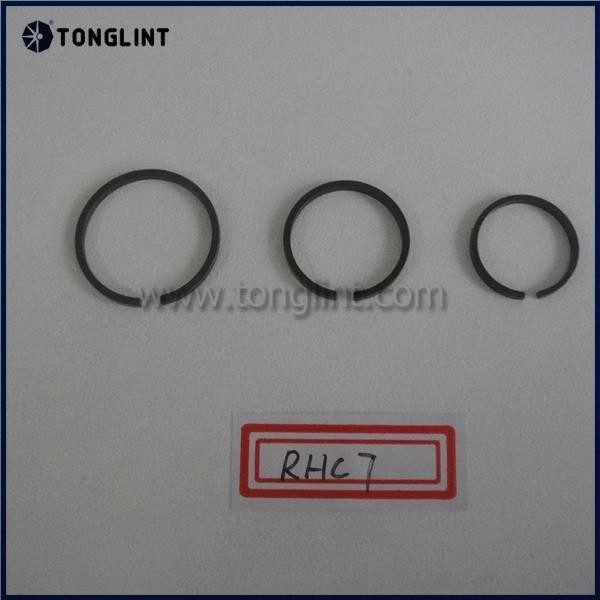

ISUZU Replacement Turbocharger Piston Ring RHC7 RHB7 Engine Spare Parts
Specifications:
| Turbo Model | RHC7 / RHB7 |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR40006 | Turb. | NH171107 | 18.50 | 1.36 | 1.00 | 1 |
Comp.(Large) | NH191305 | 16.00 | 1.64 | 1.00 | 1 |
|
Comp.(Small) | NH261605 | 14.00 | 1.38 | 0.90 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
