Detailed Product Description

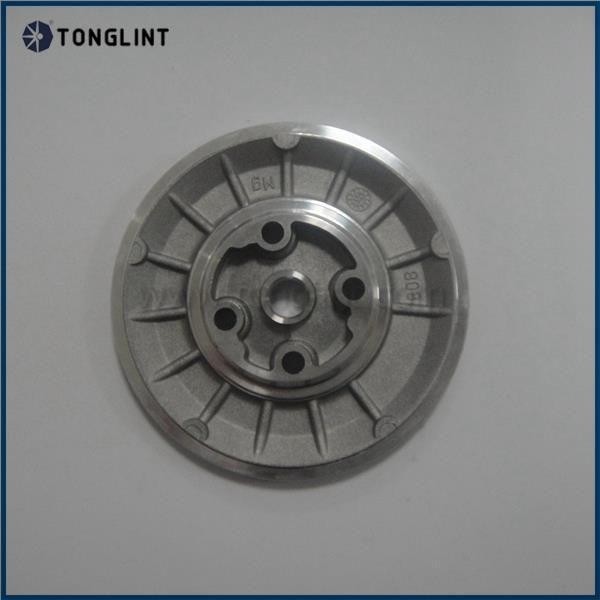

Alluminium Alloy GT15-25 Turbocharger Back Plate for GT Turbocharger Spare Parts
Dimension
Tonglint No. | Model | OD mm(A) | ID mm(B) | CW mm(C) | PR mm(D) | H |
TBP10001 | GT15-25 | 95.00 | 84.20 | 45.00 | 9.35/10.00 | 12 |
TBP10002 | GT15-25 | 120.20 | 100.20 | 47.00 | 10.00 | 12 |
TBP10003 | GT15-25 | 99.00 | 89.60 | 50.40 | 9.35/10.00 | 12 |
TBP10004 | GT15-25 | 111.00 | 91.30 | 50.50 | 9.35/10.00 | 12 |
TBP10005 | GT15-25 | 119.70 | 95.30 | 50.40 | 9.35/10.00 | 12 |
TBP10006 | GT15-25 | 119.70 | 97.65 | 50.40 | 9.35 | 12 |
TBP10007 | GT15-25 | 120.00 | 95.30 | 50.40 | 9.35/10.00 | 12 |
TBP10008 | GT15-25 | 125.20 | 117.90 | 50.40 | 9.35/10.00 | 12 |
TBP10009 | GT15-25 | 112.10 | 96.20 | 53.40 | 9.35/10.00 | 12 |
TBP10010 | GT15-25 | 124.00 | 100.20 | 53.40 | 9.35/10.00 | 12 |
TBP10011 | GT15-25 | 129.00 | 100.20 | 53.40 | 9.35/10.00 | 12 |
TBP10012 | GT15-25 | 107.50 | 87.20 | 53.40 | 9.35/10.00 | 12 |
TBP10013 | GT15-25 | 122.30 | 97.00 | 53.40 | 10.00 | 12 |
TBP10014 | GT15-25 | 134.10 | 126.80 | 53.40 | 10.00 | 12 |
TBP10015 | GT15-25 | 129.00 | 112.00 | 57.40 | 10.00 | 13 |
TBP10016 | GT15-25 | 124.00 | 100.20 | 57.40 | 10.00 | 13.60 |
TBP10017 | GT15-25 | 129.00 | 100.20 | 57.40 | 10.00 | 13.60 |
TBP10018 | GT15-25 | 121.50 | 112.70 | 61.40 | 9.35/10.00 | 13.60 |
TBP10019 | GT15-25 | 129.00 | 116.00 | 61.40 | 10.00 | 13.60 |
TBP10020 | GT15-25 | 129.00 | 120.20 | 61.40 | 10.00 | 12 |
TBP10021 | GT15-25 | 138.00 | 116.00 | 61.40 | 10.00 | 13.60 |
TBP10022 | GT15-25 | 117.50 | 114.20 | 45.40 | 10.00 | 13.50 |
