Caterpillar Earth Moving 235BL Loader S2E Turbo 168190 Turbocharger for 3116TA Engine Product Details: Specifications: Applications: 1995-11 Caterpillar Earth Moving with 3116TA Engine TIPS: A turbocharger, often called a turbo, is a small radial fan pump driven by the energy of the exhaust...

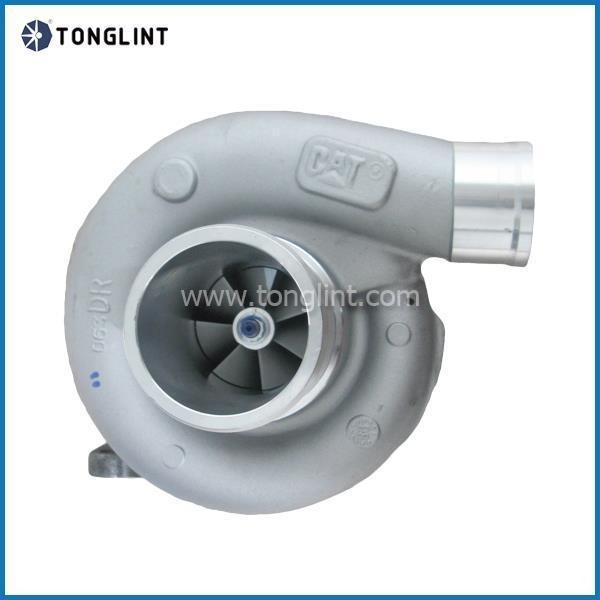

Send InquiryCaterpillar Earth Moving 235BL Loader S2E Turbo 168190 Turbocharger for 3116TA Engine
Product Details:
| Place of Origin |
Jiangsu, China |
|
Brand Name |
TONGLINT |
|
Certification |
TS16949 |
|
Model Number |
S2E |
Specifications:
| Turbo Model |
S2E |
|
Part Number |
168190 |
|
OEM Number |
124-9332, 0R7000, 1249332 |
|
Description |
235BL Loader |
|
Engine Model |
3116TA |
|
CHRA |
168112 (178162, 0R6991, 1168112, 1246277) |
|
Bearing Housing |
168017 (1233943) |
|
Turbine Wheel |
167423 (4P2755) |
|
Comp. Wheel |
166564 (1006765) |
|
Back plate |
166537 (1169548) |
|
Heat Shield |
194149 (7C5856) |
|
Repair Kit |
318379 |
Applications:
1995-11 Caterpillar Earth Moving with 3116TA Engine
TIPS:
A turbocharger, often called a turbo, is a small radial fan pump driven by the energy of the exhaust gases of an engine. A turbocharger consists of a turbine and a compressor on a shared shaft. The turbine section of a turbocharger is a heat engine in itself. It converts the heat energy from the exhaust to power, which then drives the compressor, compressing ambient air and delivering it to the air intake manifold of the engine at higher pressure, resulting in a greater mass of air entering each cylinder. In some instances, compressed air is routed through an intercooler before introduction to the intake manifold. Because a turbocharger is a heat engine, and is converting otherwise wasted exhaust heat to power, it compresses the inlet air to the engine more efficiently than a supercharger.
