Detailed Product Description

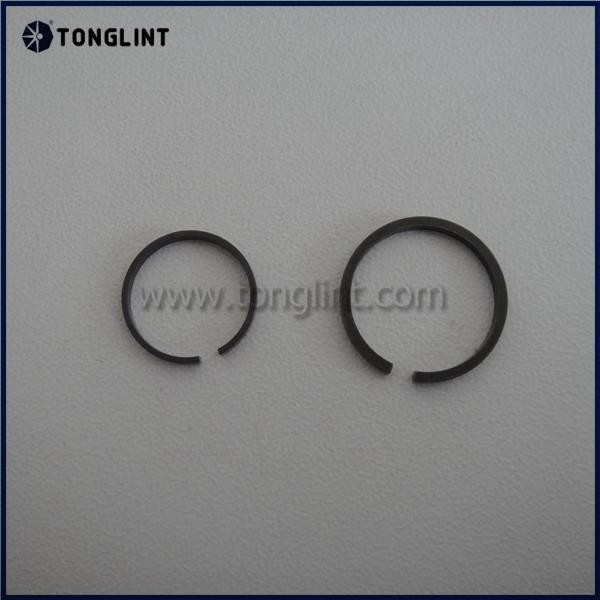

OEM Parts Turbocharger Piston Ring TB02 TB25 TB28 Gasoline Car
Specifications:
| Turbo Model | TB02 / TB25 / TB28 |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR10006 | Turb. | 400749-0006 | 15.88 | 1.60 | 1.00 | 1 |
Comp. | 403818-0009 | 12.70 | 1.60 | 0.65 | 1 |
Over-sized Dimension
Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020",0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
