Detailed Product Description

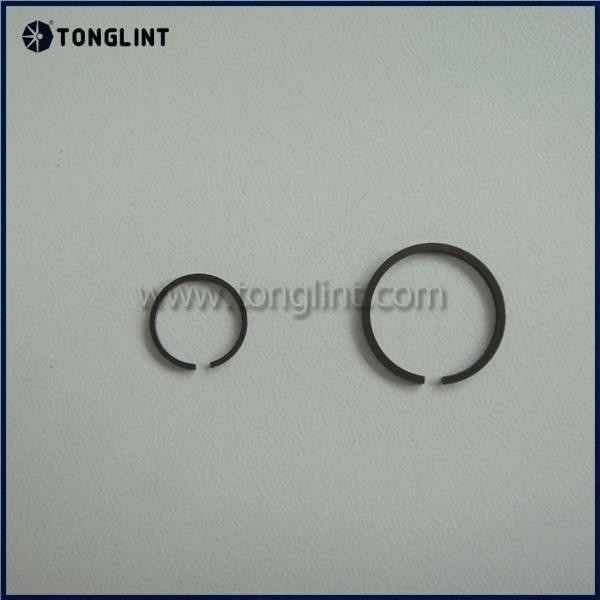

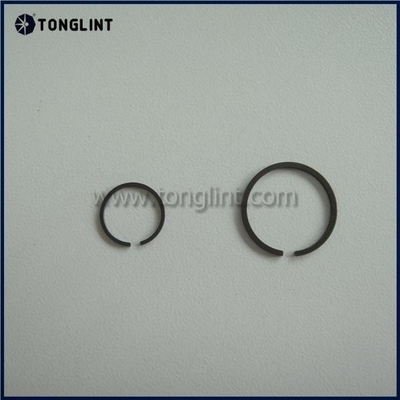

RHF4 / RHF4H Piston Ring Seal Ring for ISUZU Turbocharger 3Cr13 W-Mo
Specifications:
| Turbo Model | RHF4 / RHF4H |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR40003 | Turb. | NN131575 | 15.00 | 1.20 | 0.90 | 1 |
Comp.(Large) | NN131576 | 12.40 | 1.20 | 0.80 | 1 |
|
Comp.(Small) | NN131577 | 10.00 | 0.98 | 0.65 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
