Detailed Product Description

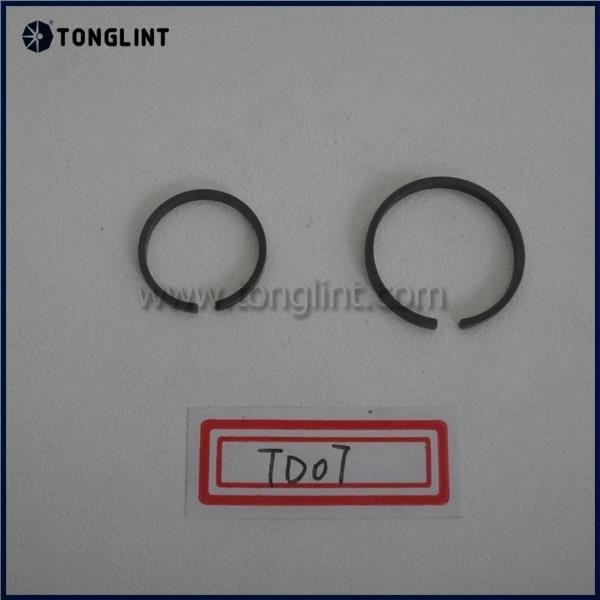

Genuine Piston Ring TD07 / TD08 / TD08H 49181-23100 49177-23100 for KATO Offway
Specifications:
| Turbo Model | TD07 / TD08 / TD08H |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR60007 | Turb. | 49181-23100 | 22.00 | 1.59 | 1.16 | 1 |
Comp. | 49177-23100 | 15.88 | 1.60 | 1.00 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020",0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
