Detailed Product Description

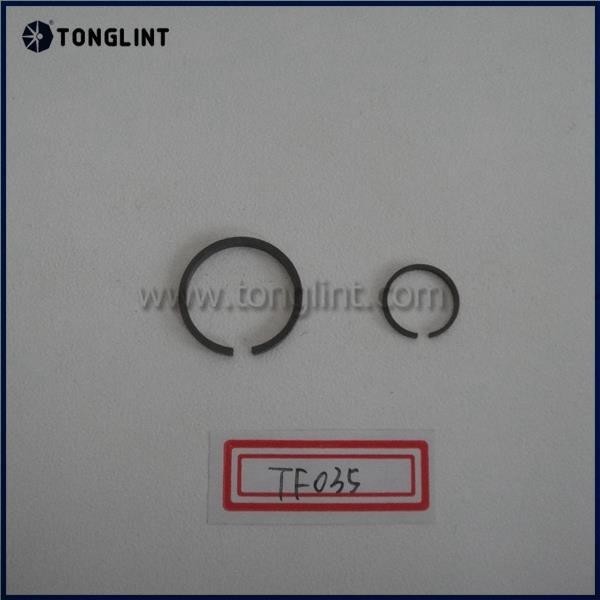

Turbocharger Piston Ring TF035 / TD04 / TC04 fit for Mitsubishi Major Repair Kit
Specifications:
| Turbo Model | TD04 / TC04 / TE04 / TF035 |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR60003 | Turb. | 49177-23100 | 15.88 | 1.60 | 1.00 | 1 |
Comp. | 49172-23200 | 10.00 | 0.98 | 0.65 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
