Detailed Product Description

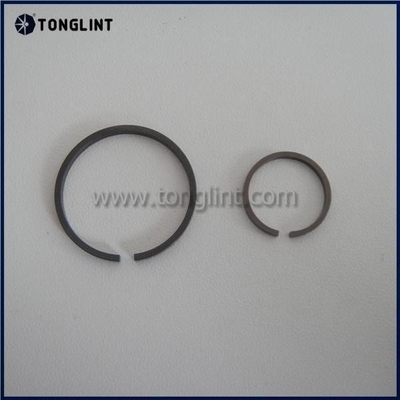

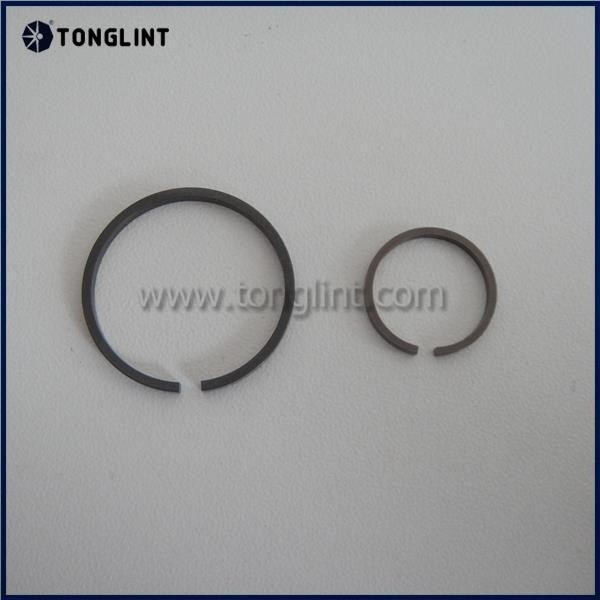

OEM Engine Turbocharger Piston Ring S3B 194798 316193 310279 for Caterpillar
Specifications:
Turbo Model | S3B |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR50003 | Turb. | 194798 | 25.30 | 1.96 | 1.40 | 1 |
Turb. | 316193 | 25.40 | 1.60 | 1.25 | 1 |
|
Comp. | 310279 | 15.80 | 1.60 | 0.90 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
