Detailed Product Description

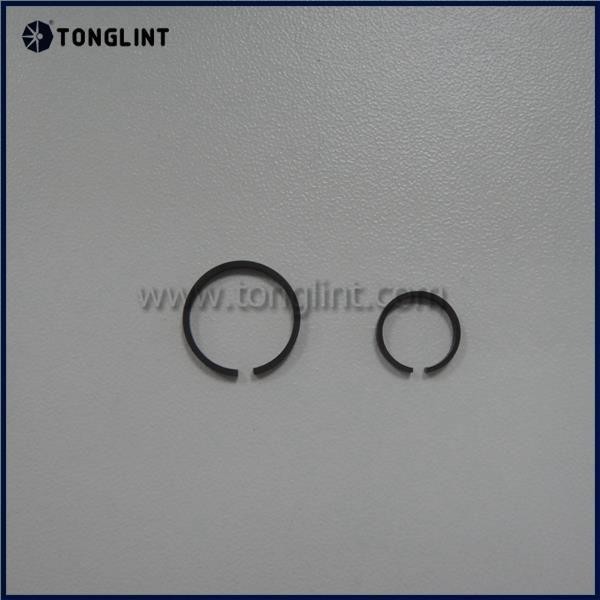

TS16949 / SGS Turbocharger Piston Ring K03 / K04 for Gasoline Automotive
Specifications:
| Turbo Model | K03 / KO3 / K04 / KO4 |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR30001 | Turb. | 5314-127-0100 | 14.00 | 1.38 | 0.75 | 1 |
Comp. | 5303-127-0100 | 10.00 | 1.38 | 0.70 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
