Detailed Product Description

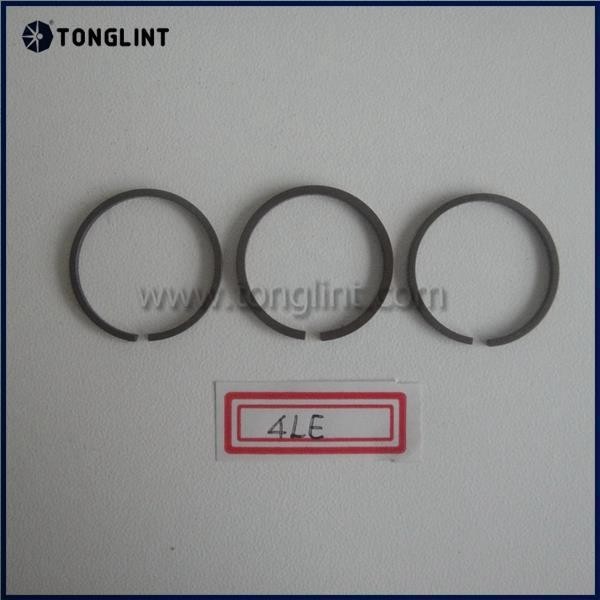

High Performance Turbocharger Piston Ring 4LE / 4LF 52951 22447
Specifications:
| Turbo Model | 4LE / 4LF |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR20002 | Turb. | 52951 | 22.48 | 1.58 | 1.20 | 1 |
Comp. | 22447 | 22.20 | 1.58 | 1.05 | 4 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
