Detailed Product Description

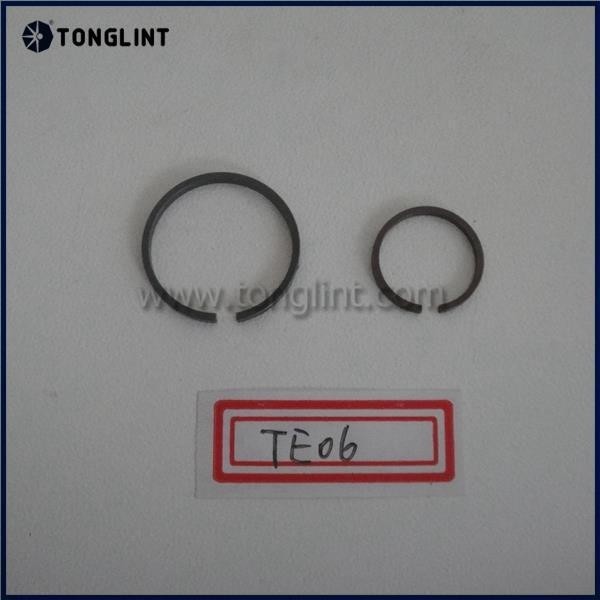

High Accuracy TE06 / TE06H Turbocharger Piston Ring for Caterpillar / Mitsubishi
Specifications:
| Turbo Model | TE06 / TE06H |
Material | 3Cr13 / W-Mo |
Over-sized Rings | Available |
Standard Dimension
| Tonglint No. | End | OE No. | O/D | Width | Thickness | Qty / Set |
TPR60005 | Turb. | 403818-0015 | 17.45 | 1.58 | 0.85 | 1 |
Comp. | 403818-0010 | 14.00 | 1.37 | 0.80 | 1 |
Over-sized Dimension
| Over-sized (OD+ / ID+) | STD/0.005", 0.005"/0.005", 0.005"/STD |
STD/0.010", 0.010"/0.010", 0.010"/STD |
|
STD/0.020", 0.020"/0.020", 0.020"/STD |
|
0.005"/0.010", 0.005"/0.020", 0.010"/0.005", 0.010"/0.020", 0.020"/0.005", 0.020"/0.010" |
