Detailed Product Description

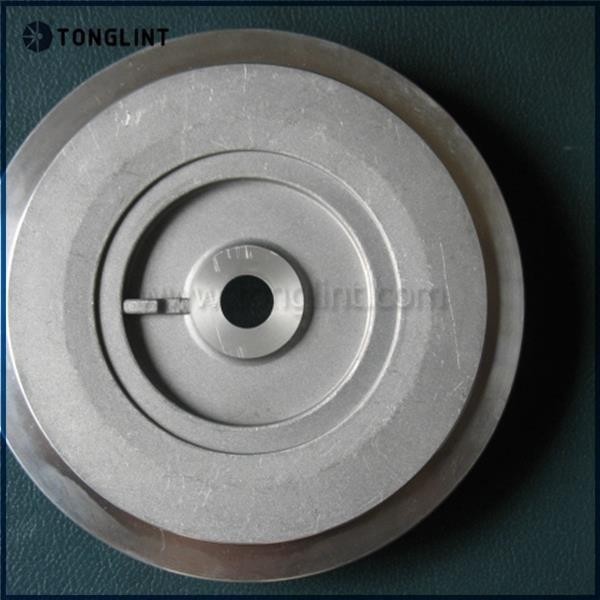

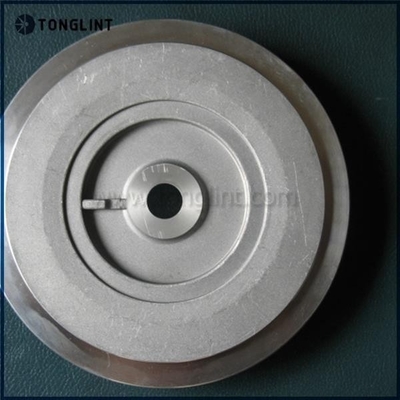

TA31 TB31 TA34 TO4 TO4B TO4E Aluminium Turbocharger Back plate for Caterpillar / Ford Turbocharger
Description
Turbo Model | T3 T300 TA31 TA34 TB31 TB34 TBP4 TO4 TO4B TO4E |
Material | Aluminum Alloy |
OE Part No. | 408045-0051 / 409629-0001 / 409629-0003/ 409629-0004 409629-0008 / 409629-0017 / 430082-0003/ 430108-0003 430108-0004 |
Dimensions
Tonglint No. | Model | OD mm | ID mm | CW mm | PR mm | H |
TBP10038 | TB34/TBP4-210 | 155.32 | 139.40 | 77.60 | 12.70 | 22.70 |
TBP10039 | TBP4-240 | 155.20 | 139.40 | 83.20 | 12.70 | 22.70 |
TBP10040 | TBP4 | 146.00 | 139.40 | 85.40 | 12.70 | 22.70 |
TBP10041 | TO4B | 133.20 | 114.20 | 71.00 | 12.60 | 16.30 |
TBP10042 | TO4B | 133.20 | 114.20 | 59.20 | 12.60 | 16.30 |
TBP10043 | TO4E | 155.32 | 139.40 | 78.00 | 12.70 | 22.70 |
TBP10048 | TO4E | 155.32 | 139.40 | 83.50 | 12.70 | 22.70 |
