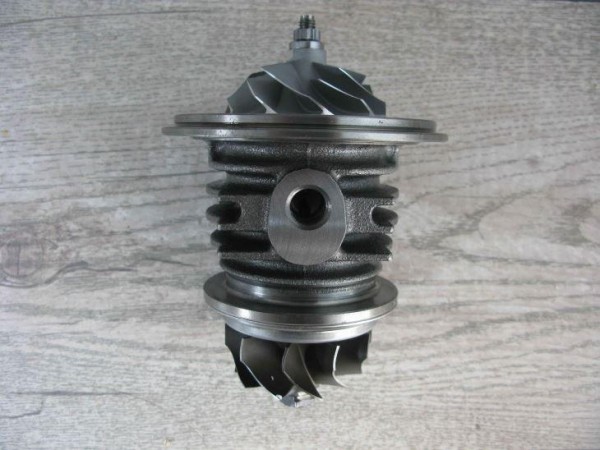

| Part Number | 465153-5003S |
| Previous Version | 465153-5003, 465153-5003S, 465153-9003, 4651530003, 4651535003, 4651535003S, 4651539003 |
| OE number | 83999247, 83999247EX, 83999247R, F0NN6K682BA |
| Description | 2200, 7840 Tractor |
| CHRA | 443854-0065 (443854-5065S)(81867227, F1NN6N684AA) |
| Turbo Model | T250-01 |
| Engine | P358, |
| Engine Manufacturer | New Holland |
| KW | 71/97 HP |
| Displacement | 5000 ccm, 4 Cylinders |
| RPM | 2200 |
| Angle (compressor housing) | 336° |
| Angle (turbine housing) | 336° |
| Bearing Housing | 435349-0011 (435350-0006)(Oil Cooled) |
| Turbine Wheel | 435406-0006 (435406-0005, 435406-0006, 435922-0005)(Ind. 53.01 mm, Exd. 46.22 mm, 10 Blades) |
| Comp. Wheel | 445347-0018 (Ind. 40.3 mm, Exd. 54.3 mm, Trm 55, 4+4 Blades) |
| Back plate | 430735-0001 |
| Heat shield Number | 4443594-0001 |
| Repair Kit | 709143-0001 (200423-0000, 707903-0002) |
| Turbine Housing | 413908-0017 (F1NN6N677AA) |
| Compressor Cover | 431022-0043 (F1NN6N661AA) |
| Turbine Housing AR | 1.16 |
| Gasket exhaust manifold | 409039-0000 (210022, 210022-0000, 2405022, 7C7431)(Stainless Steel, Dual Port) |
| Gasket (oil outlet) | 413709-0001 (Paper) |
