TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine

China good quality Complete Turbocharger on sales
China good quality Complete Turbocharger on sales
I have received the products, very nice. Everything is ok. I am ready to do more business. Thank you!

—— Vladimir Palacios

good quality. i would like to buy more.

—— John Pacay

products are good. good service, professional sales, lets cooperate in the future.

—— ASHRAF ALNASSERI

I'm Online Chat Now

TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine

TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine factory TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine factory TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine factory TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine factory

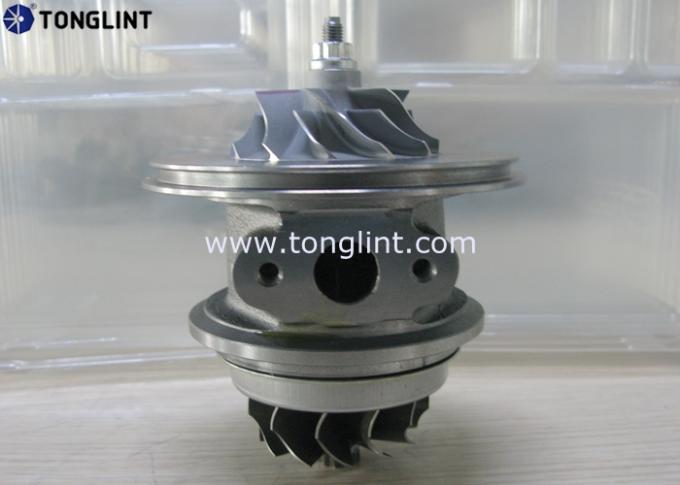

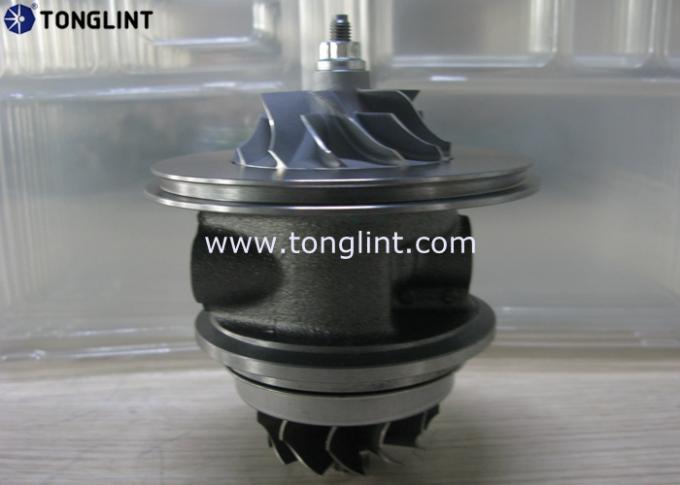

Large Image : TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine

Product Details:

Place of Origin:Jiangsu, China
Brand Name:TONGLINT
Certification:TS16949 / SGS
Model Number:TD05H-14G 49178-03123

Payment & Shipping Terms:

Minimum Order Quantity:20 pcs
Price:negotiable
Packaging Details:In Cartons
Delivery Time:In 7-30 days
Payment Terms:T/T, Western Union
Supply Ability:10,000pcs per month
Detailed Product Description
Product Name: Turbo Cartridge Model: TD05H-14G/10
CHRA P/N: N/A Turbo P/N: 49178-03123 / 49178-03150
OEM No.: 28230-45100 Application: Mitsubishi 4D34TI Engine / Hyundai 4D34-D4DB
Test: Balanced Material: K418 Turbine Wheel; C355 Compressor Wheel

TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine



Specification:



Turbo Model:

TDO5H-14G/10

Turbo Assembly No.:

49178-03123

OEM No.:

28230-45100

Interchangeable P/N.:

49178-03150

Application:

Mitsubishi 4D34TI Engine / Hyundai 4D34-D4DB

Service Kit:

49178-81100



More Details:



TD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI EngineTD05H-14G 49178-03123 28230-45100 Turbo CHRA Cartridge For Mitsubishi 4D34TI Engine



Description:



The center hub rotating assembly (CHRA) houses the shaft which connects the compressor impeller and turbine. It also must contain a bearing system to suspend the shaft, allowing it to rotate at very high speed with minimal friction. For instance, in automotive applications the CHRA typically uses a thrust bearing or ball bearing lubricated by a constant supply of pressurized engine oil. The CHRA may also be considered "water cooled" by having an entry and exit point for engine coolant to be cycled. Water cooled models allow engine coolant to be used to keep the lubricating oil cooler, avoiding possible oil coking from the extreme heat found in the turbine. The development of air-foil bearings has removed this risk.



Tonglint can design, process and produce cartridges according to clients' drawings and samples.
For clients in need of cartridges, it is strongly recommended to provide us with the model and assembly no. of products. If you have some special requirements for a certain one, please specify your requests and technical parameters.



Competitive Advantage:



1. Complete Industry Chain
Tonglint has its own core industry chain for turbocharger and turbo spare parts.
 - Own factory for complete turbocharger & key turbo spare parts
 - Professional service team to deal with foreign trade business


2. Variety of Products
Tonglint has the capability to process over 500,000 kinds of turbo products per year. The main products can cover the most popular makes and applications of cars, trucks, buses, ships and construction machinery.
 - Turbocharger for both automotive cars and diesel trucks or equipments.
 - Service parts (repair kit, thrust bearing, journal bearing, thrust collar, piston ring, seal plate, O ring, gasket, heat shield, oil deflector, etc.)
 - Main components (cartridge, turbine shaft, compressor wheel, bearing housing, turbine housing, compressor housing, actuator, nozzle ring)



3. Rich Experience
Tonglint has more than 13 years' experience in developing and manufacturing hundreds of models of products for both aftermarket and OEM. Technicians from R&D department can design, process and produce turbo products per all clients' drawings or samples.


4. Credible Quality
The quality of products depends on the suitability of material, maturity of technology, operating experience of workers, equipment condition, management ability and quality consciousness. Tonglint workshops always process turbo products with high quality material and strictly follow the original prints.


5. Competitive Price
Since Tonglint has its own industry chain of turbo products, the cost of all the turbo spare parts can be controlled by us,to meet all the customers' demands.



6. One-stop Service

Tonglint has its own foreign trade department, including six professional sales. All the staffs have had an internal training focusing on the staff development and career planning, when he/she becomes a member of Tonglint. Tonglint sales can provide customers with the most comprehensive, economic and suitable solutions, to meet their real demands on purchasing at the most.



For more information, please feel free to contact us. Tonglint staff will do our best to fulfill your expectations!

Contact Details
Tonglint Turbo Technologies Co., Ltd.

Contact Person: Mr. Richard Gan

Tel:86-0510-81819679

Fax:86-0510-85623662
